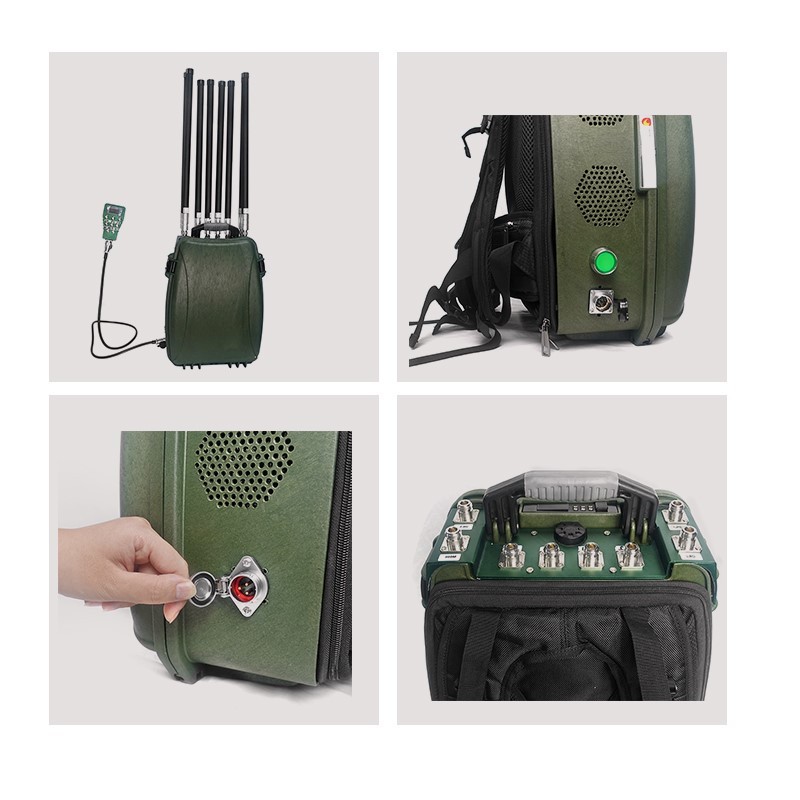

Backpack drone countermeasure device
1、 Application background
With the booming development of the drone market, drones are widely used
in various aspects of social life. Inevitably, the use of drones has also
brought some harm, such as the frequent emergence of black flying drones in no
fly zones, the use of drones for poisoning, and their application in the field
of war. This product is mainly used for the Black Flying Drone, which can drive
away and make forced landings within the field of view. This device is
customized according to customer requirements and adopts a backpack style,
which can be carried for a long time. It has a built-in battery, making it more
convenient to use without restrictions. At the same time, the device is
equipped with two antenna modes, external omnidirectional and internal board
shaped, to meet various usage needs.
2、 Product features
①Backpack
design, easy to carry, stylish appearance, and customizable color for the outer
backpack.
②The battery pull-in design is convenient for disassembly, replacement, and transportation.
③Single switch control for more freedom of
operation.
④Equipped with two antenna
modes, external omnidirectional antenna and handheld directional antenna, to
meet various usage needs.
⑤A highly optimized antenna provides better
countermeasure distance.
⑥The aluminum shell paired
with aluminum heat dissipation blocks provides better heat dissipation and more
stable performance.
⑦ Charged display screen, easy to know the amount of electricity.
4、 Product parameters
|
Output terminal |
working frequency |
Average output power |
Channel output power |
|
433M |
428-438MHz |
50W/47dbm |
20dbm/30KHz（min） |
|
900M |
860-930MHz |
50W/47dbm |
20dbm/30KHz（min） |
|
1.2G |
1160-1280MHz |
50W/47dbm |
20dbm/30KHz（min） |
|
1.5G |
1550-1620MHz |
50W/47dbm |
20dbm/30KHz（min） |
|
2.4G |
2400-2500MHz |
50W/47dbm |
20dbm/30KHz（min） |
|
2.4G （Can be switched to other frequency bands） |
2400-2500MHz |
50W/47dbm |
20dbm/30KHz（min） |
|
5.2G |
5100-5300MHz |
50W/47dbm |
20dbm/30KHz（min） |
|
5.8G |
5725-5850MHz |
50W/47dbm |
20dbm/30KHz（min） |
|
Battery capacity：25A Multiple battery options available for easy disassembly with a plug-in battery design |
|||
|
Host weight：22kg Weight with packaging：38kg |
|||
|
Host size：48·35·14.5 cm |
|||
5、 Operation
1. Check if the appearance of the equipment is intact, refer to the product list catalog, and check if the accessories are complete.
2. Align the host port and antenna identification one by one, and then tighten the antenna onto the device.
3. Link the control handle to the host.
4. Turn on the battery display button to check if the battery is sufficient.
5. Press all function keys, the indicator light will light up, and it will start working.
6. Grasp the handle and align it with the direction where you need to counter the drone.
7. After 30 seconds, the countermeasure device takes effect and the drone is driven away or forced to land.
8. After the countermeasure is completed, press the function key and the indicator light will turn off.
