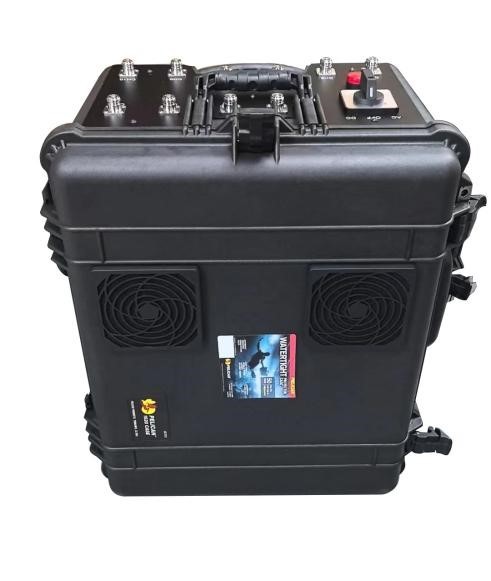

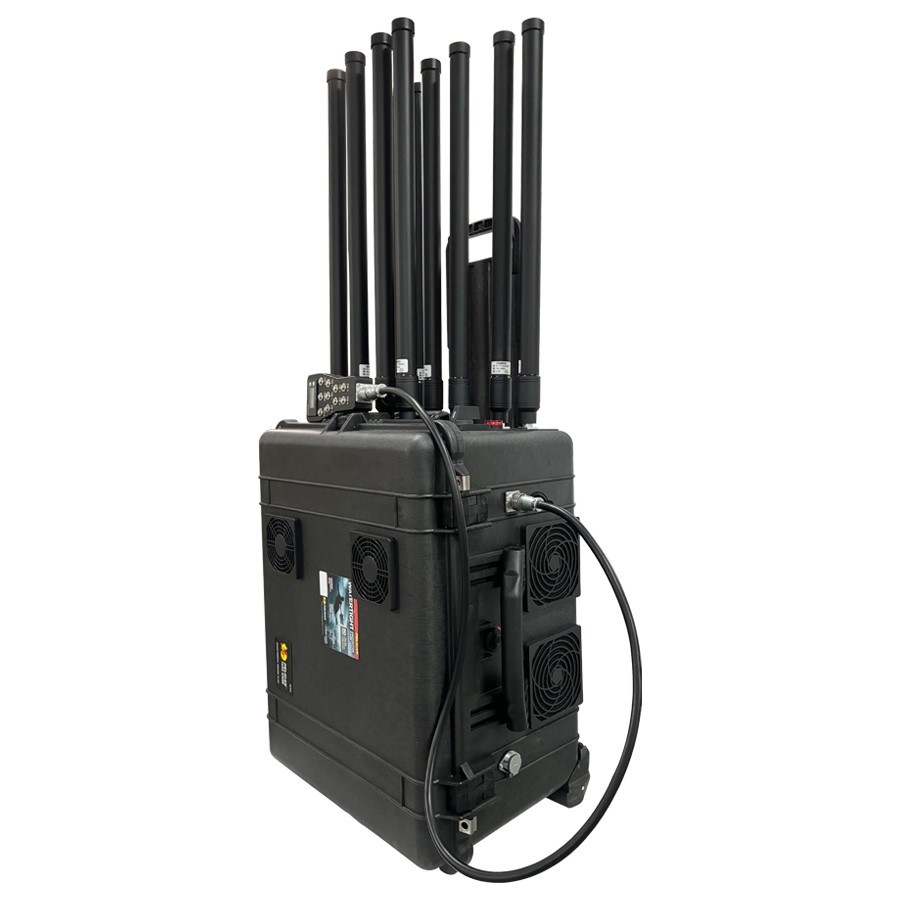

8-band portable unmanned drone countermeasure device
1、 Product features
·The pull-out outer box design is convenient for carrying.
·Built in battery.
· Equipped with a remote control handle for easy operation.
·Optional omnidirectional and handheld directional antennas.
·Customizable frequency bands and power.
·Single circuit switching technology controls power output.
·Adopting ultra-high frequency broadband seamless
interference technology.
·Effective segmentation only interferes with drone control and video transmission frequency, without causing interference to other frequencies.
·Multi frequency band (4-12 frequency band) interference can counteract most black flying drones.
2、 Product parameters
Frequency band customizable, power customizable, as follows for reference
|
Output terminal |
working frequency |
output power |
Remarks |
|
433M |
433MHz |
50W |
|
|
900M |
860-930MHz |
50W |
|
|
1.2G |
1160-1220MHz |
50W |
|
|
1.4G |
1400-1450MHz |
50W |
|
|
1.5G |
1550-1620MHz |
50W |
|
|
2.4G |
2400-2500MHz |
50W |
|
|
5.2G |
5150-5350MHz |
50W |
|
|
5.8G |
5725-5850MHz |
50W |
|
|
Battery:50A Continuous power supply: approximately50min |
|||
|
Host weight:38kg Host size:60·48·35cm Packaging size：74·59·50（+11wheel）cm 【Aviation box packaging】 Overall weight：61kg |
|||
|
Counter range: 800-1500 meters (depending on the model and altitude of the drone) |
|||
|

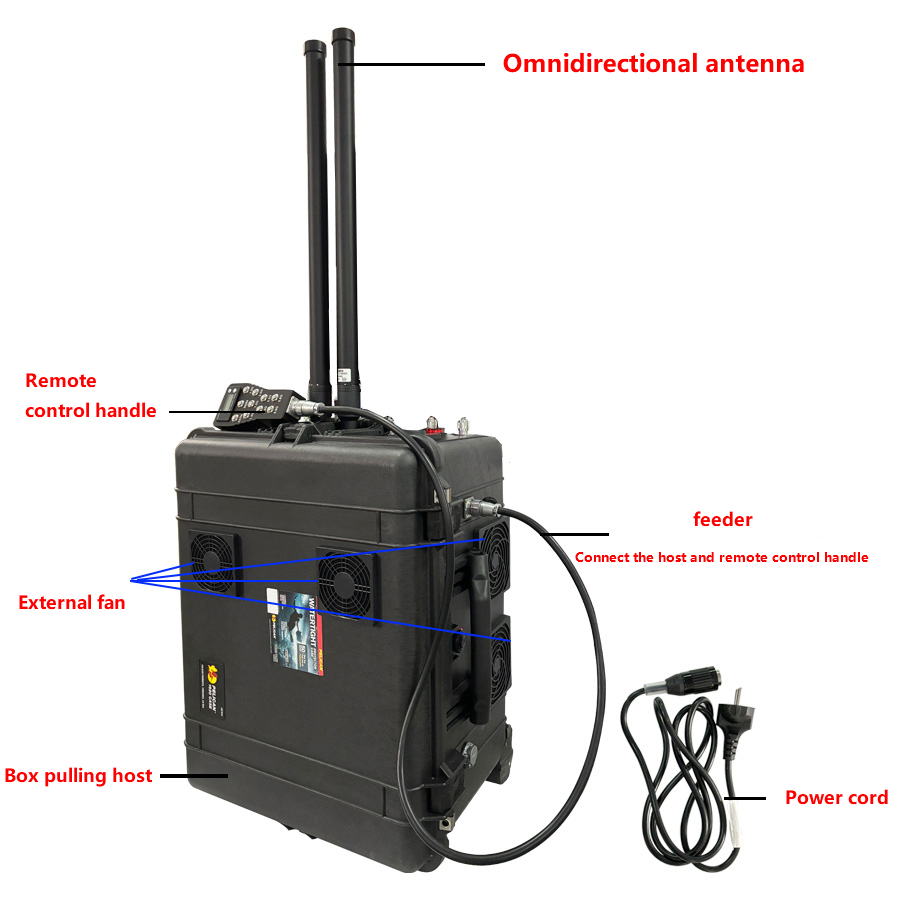

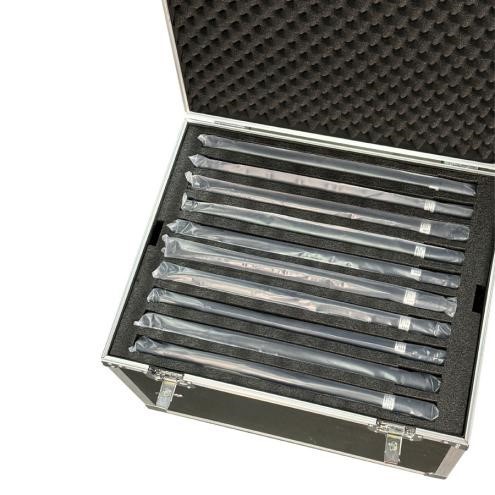

Product List: Host+Power Cord+Aviation Box+Remote Control Handle+Feed Line+Omnidirectional Antenna |
|||
1. Before use, check if the equipment is in good condition and if the accessories are complete.
2. Check the battery level and fully charge it before use.
3. Turn on the main power switch and press all function buttons.
