Drone detector for FPV UAV
UAV defense system with integrated detection and attack
1. General
The surveillance and strike-integrated UAV defense system adopts passive detection with high integration design, which is applicable to villas, office parks, industrial facilities and rapid deployment. A single device can detect and counter UAVs, and provide all-around low-altitude protection anytime, anywhere. The system supports Ethernet/4G wireless communication, freely expands networking, and multiple stations can realize wireless grid intelligent control.Application occasions
VIP escort, special p olice explosion protection, concerts, large-scale conference activities, airport management, examination halls, prisons, mi litary sites, courts, conference rooms, cinemas, hospitals, government institutions, financial institutions, churches, temples, libraries, business negotiations, gas stations, personal privacy protection and other places that need to be quiet, confidential and information security.
2. System composition

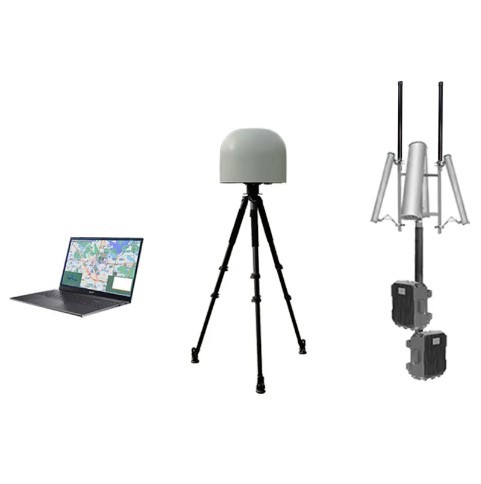

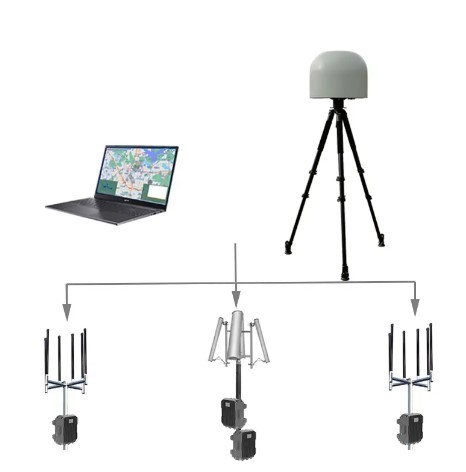

The low-altitude UAV defense system consists of a surveillance and strike-integrated UAV defense device (for detection and countermeasures), a power management device and a back-end control platform (for monitoring and controlling the whole process), which can be flexibly configured in various scenarios. The front-end data processing and data upload can also be carried out through a dedicated 4G transmission workstation, which can be controlled on the mobile end after being uploaded to the cloud platform.
3. Technical index
|
1. Detection frequency: 300MHz~6000MHz;
|
|
2. Key detection frequency band: 2.4G/5.8G/800MHz/900MHz/1.4GHz;
|
|
3. Coverage angle: 360 °;
|
|
4. Detection distance: ≥ 3000m;
|
|
5. Minimum detection height: 0m;
|
|
6. Scanning time: 120M bandwidth scanning time ≤ 0.25s;
|
|
7. Reaction distance: ≥ 2000m;
|
|
8. Key frequency band: 2.4G/5.8G/800MHz/900MHz/GNSS;
|
|
9. Interference angle: 360 ° horizontally and 90 ° vertically;
|
|
10. Interception response time: ≤ 3s;
|
|
11.Power supply mode: DC24V 10A (optional power adapter, AC220V power supply; optional power box for on-board use);
|
|
12. Communication interface: RJ45;
|
|
13.4G function: optional;
|
|
14. Protection grade: IP66;
|
