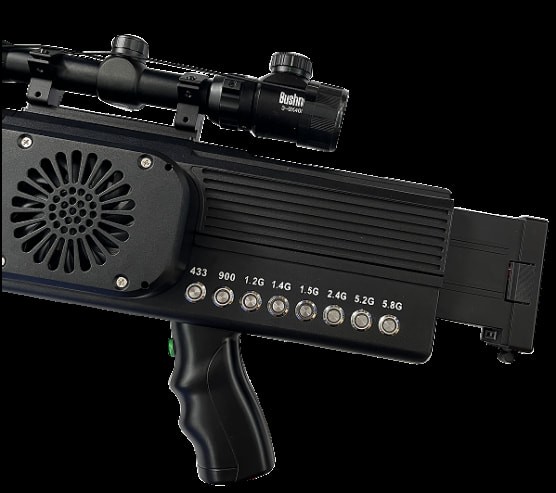

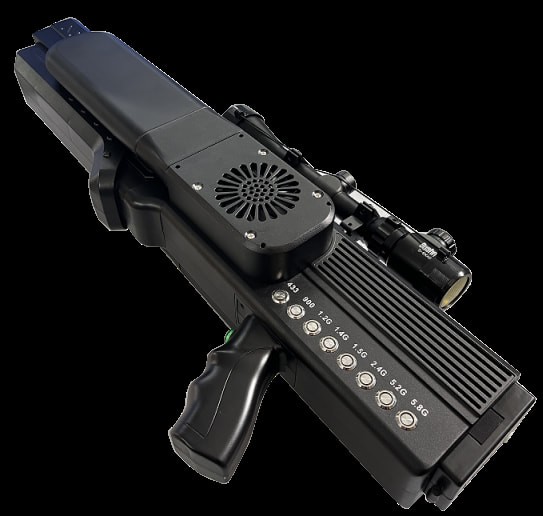

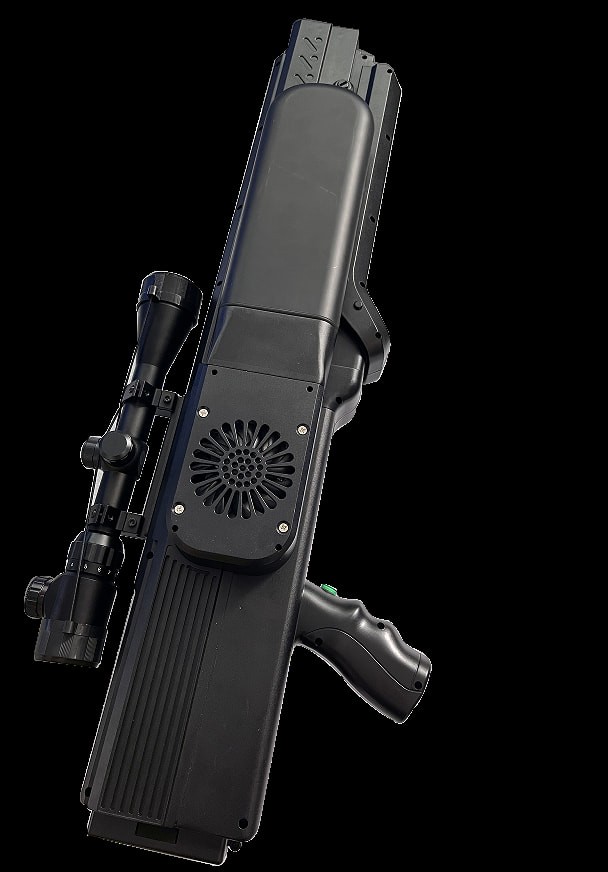

01. Product description
1438-WRJ-6 is a six-frequency high-power directional gun UAV countermeasures equipment, built-in lithium battery, easy to operate, can achieve single-frequency control, the equipment uses narrowband jamming technology and radio frequency suppression technology, cut off the connection between the UAV and the remote control, so as to force the UAV to return. After the UAV is controlled, the image transmission channel is cut off, and it will not be able to transmit video, aerial photos, and receive any instructions issued by the ground remote control, so as to protect the key area and prevent the purpose of privacy disclosure.
02. Main indicator parameters
Working band/Power 425-440MHz Power 10W

830-919MHz Power 10W
1100-1300MHz power 40W
1555-1620MHz power 10W
2400-2500MHz Power 40W
5825-5852MHz Power 20W
Battery capacity 24V 5A/H
Power display Power display
Counter-capability return
Countermeasures range 500~1000m
Countermeasure Angle 10°
Battery life 1 hour
Charging Mode 29.4V charging adapter
Length * width * height :685*225*75mm
Weight 5Kg
Note: OEM customization: module frequency band, power, screen printing can be customized according to customer requirements
03. Key industries
Airports, public procuratorate systems, prisons, detention centers, drug rehabilitation centers, security agencies, troops, major events, concerts, important conferences, government agencies, anti-terrorism and other important places and facilities, need space security, drone control areas.

04. Operation instructions
1.900MHz/1.6G/2.4G/5.8G fully open for forced landing of the UAV. (If the UAV's own flight control system has no forced landing function, it cannot be forced landing.)
2. Drive 2.4G/5.8G, lose control of the drone when the GPS is turned off, and the drone returns.
3. First select the "frequency band button switch" to determine the functions that need to be countered by the drone.
4. Point the front direction of the device at the drone and press the power start button. At this time, the "frequency band button switch" shows "blue light", indicating that it has begun to work.
5. "Power display" can know the power situation, check the power after each use, the power display 1 grid needs to be charged in time.
